Reactors Pipeline Design

Pipeline Design

All the pipeline manufacture as ST37 or stainless steel between group of reactors  or production and storage, is first planned via 3D simulations and then manufacture is performed  by paint, assembly and welding experts. If required all weldings can be tested with X-ray and similar NDT tests. The quality of the production, with the careful and critical welding process and continiuos technic controls, can be checked with the welding outlook and the approved perfection on the test processes.

After inspection of the pipeline project and 3D modelling has been done  by our engineers, all the piping work, distances, consols and frame dimensions are determined before the manufacture. Therefore you get the required installation without any unpleasant surprises at the end of the installation.

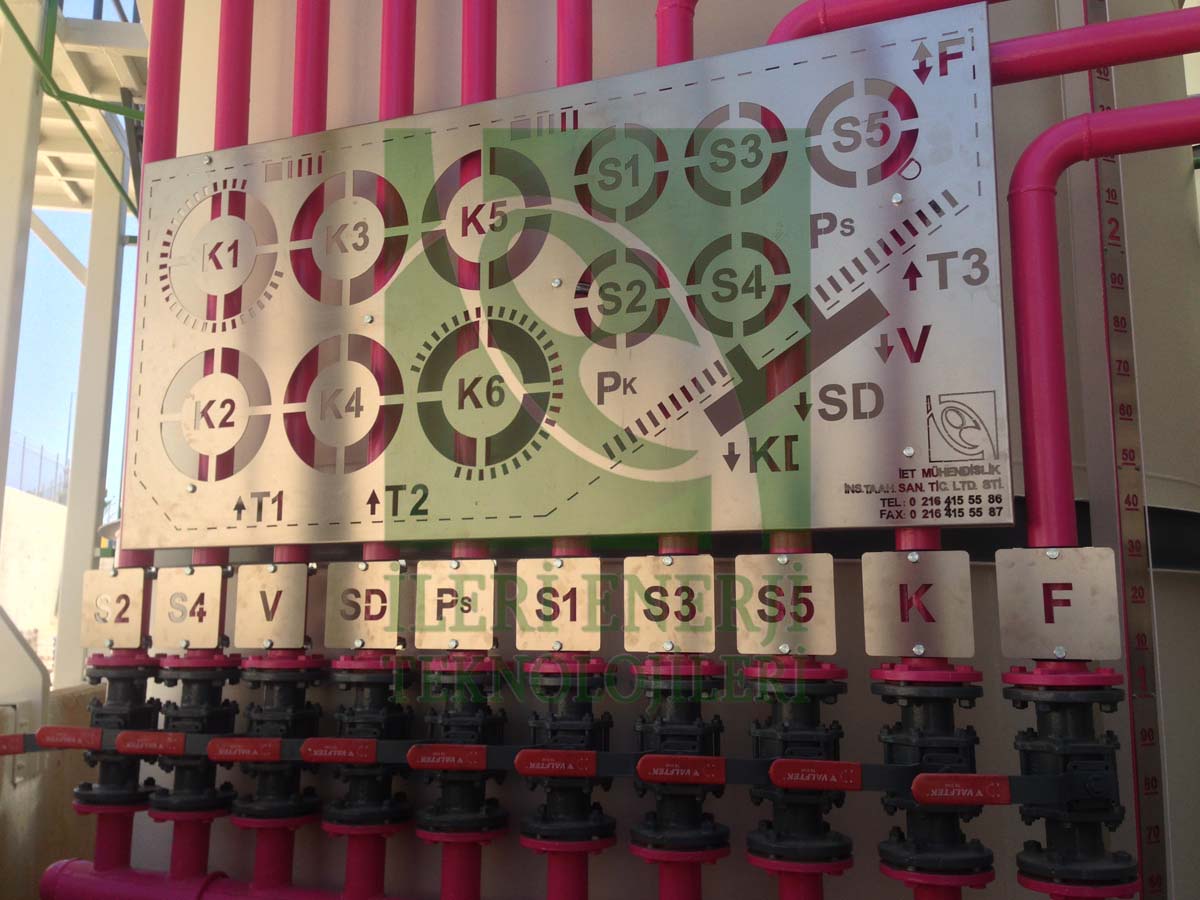

The lifetime of the painting can be sustained long with the final layer painting suitable with the liquid inside the system after the sanblasting and lining in case of inquiry. The valves,steam traps, strainers on the pipeline are supplied by ourside and as an addition we can also supply advanced measurement equipments like ultrasonic level measurement, radar level measurement, pHmeter, cumulative meter and PLC automation options includes automatic controlled valves. In order to control the valve groups and make it visual for the operation, we supply stainless steel maps and line codes.
